David Clark H10-13Y Headset

$361.75 $305.50
(You save $56.25)
SKU:
DCH10-13Y
Weight:
6.00 LBS
Availability:
Usually ships within 24 hours.
Shipping:
Calculated at checkout
Gift Wrapping:
Options available
Quantity:

Product Description

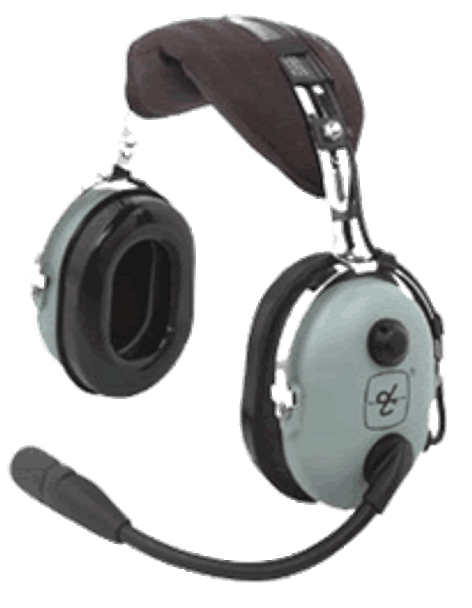

DCH10-13Y  David Clark H10-13Y  Headset

The David Clark H10-13Y Headset has all the features of the H10-13 series but is small sized for youth or adults with smaller heads.

H10-13S Features:

The same as the H10-13.4, except this headset fits smaller head sizes of children and petite adults.

  • Now with Super-Soft, Double Foam Headpad
  • "Undercut" comfort gel ear seals
  • Certified Noise Reduction Rating - 23 dB
  • Reduced headband force
  • Universal Flex Boom for perfect microphone placement
  • Exclusive M-7A, the most advanced noise-cancelling microphone available
  • Low-profile volume control knob with detent settings
  • Molded cord assembly made to exceptional pull and flex standards
  • 5-year Guarantee
  • FAA TSO Approved C57 Cat. B and C58a
  • Exceeds RTCA/DO-214 Standards
 (This headset does not qualify for free shipping)

Aviation Headset Specifications


H10-13Y

NSN 5965-01-446-1530

Special Features:

 Passive
 General Aviation

 FAA TSO Approved C57 Cat. B and C58a

H10-13.4
Impedance: Standard
NRR: 23dB

Earphone Type: Dynamic Noise-Canceling Mic: M-7A Amplified Electret
Earphone Impedance: 150 ohms(300 each; wired in parallel) Mic Impedance: 50 ohms +/- 20%
Earphone Sensitivity: 90 dB SPL on flat plate coupler, re 1mW input @ 1KHz Mic Sensitivity: 400mV RMS ±6dB into 150 ohm load @ 1kHz for 114dB SPL input
Earphone Frequency Response: 200-5,500 Hz Mic Freq Response: 300Hz--3.5KHz per RTCA DO 214
Earphone Plug: PJ-055 (.25" phone plug) Mic Plug: PJ-068 (.206" phone plug)
Boom Type: Universal Flex Cord: 5 ft.Straight
Headpad/Hardware: Super-Soft, Double-Foam Headpad,Lightweight Hardware Weight/Headset Only: 16.5 oz.

FREE SHIPPING !  (US lower 48 states only)

Warranty Information

David Clark headsets carry a five-year warranty.
