Description
Overview

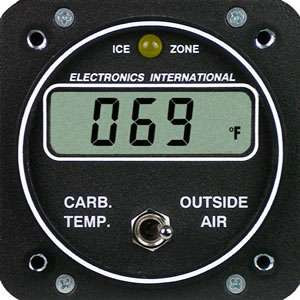

Electronics International provides the budget-conscious pilot the option to monitor their Carburetor Temperature and Outside Air Temperature with the same precision found in the most advanced analyzers on the market, while not breaking the bank. The CA-1 provides pilots with One Channel of Carb Temp and One Channel of OAT readings in a stable, one-degree digital format. An "Ice Zone" Warning Light alerts the pilot when either temperature is between 10 Degrees to 39 Degrees (Fahrenheit). With a toggle switch, select which temperature you would like to monitor. The large, crisp LCD is viewable in direct sunlight, and is backlit, making it easy to monitor your Carb Temp and OAT.
Specifications
Size (H x W x D)
2.5" x 2.5 " x 2.65" Depth
Weight - Instrument
7 oz.
Weight - Channel
2 oz for a Temperature Probe & XP-6' Cable
Power Requirements
7.5 to Volts, 1/10 Amp
Display
Viewable in direct sunlight, with dimmable 12 and 24 volt backlight control lines.
Accuracy
1/2%
Intensity Control
An external control line allows you to control the Backlight intensity.
Probes
Type K Thermocouple, Ungrounded
Kit Includes
Instrument, 2 ea. P-128 Precision Probe, 2 ea. XP-6' Precision Thermocouple Cable, Wire Harness, Installation and Operating Instructions.
